UART China Distance Measuring Sensors Wholesale Supplier
Product Introduction

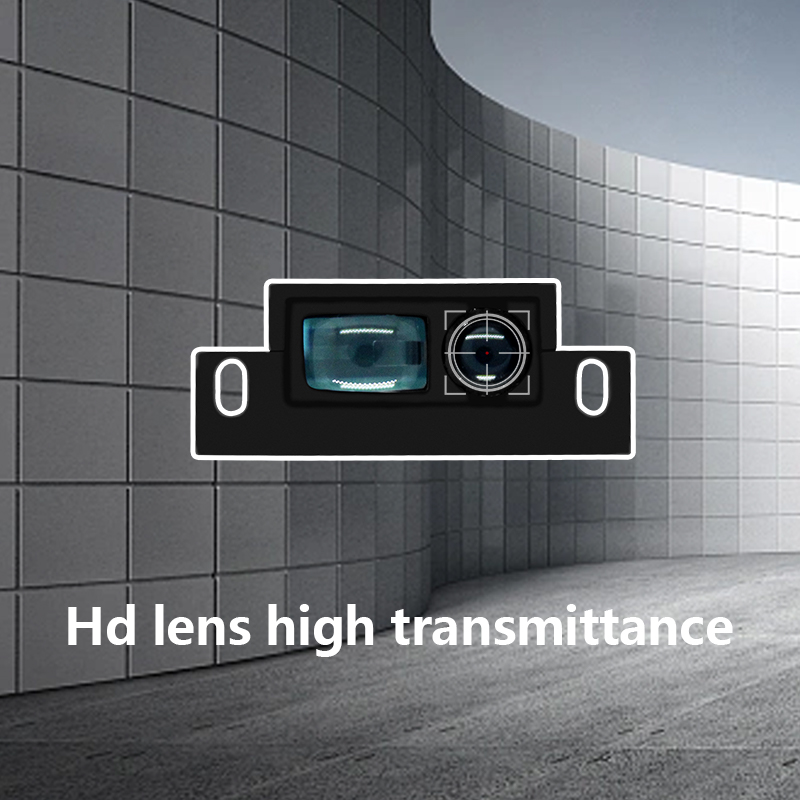

Industrial laser distance sensor is a device for measuring distance in industrial applications. It uses laser technology to measure the distance between the object and the sensor, and provides real-time data information that will trigger an alarm signal when the threshold is exceeded. The measuring distance range of the sensor can reach 40 meters, and it also has the characteristics of fast response, which can monitor the position and movement status of objects in real time.
Through the RS485 serial communication protocol interface, the laser distance module can communicate with other devices (such as PLC, computer, etc.), can send measurement data to the host computer in real time, and receive control commands sent by the host computer to realize remote monitoring and control.
This high accuracy distance sensor usually has high precision and high stability, and can be used in various harsh industrial environments. It can be widely used in automated production lines, warehousing logistics, robot navigation, intelligent transportation and other fields. Can improve production efficiency and safety.
Parameters
|
Model |
S9513 |
|
Measuring Range |
0.03~10m |
|
Measuring Accuracy |
±1mm |
|
Laser Grade |
Class 2 |
|
Laser Type |
620~690nm,<1mW |
|
Working Voltage |
6~32V |
|
Measuring Time |
0.4~4s |
|
Frequency |
3Hz |
|
Size |
63*30*12mm |
|
Weight |
20.5g |
|
Communication Mode |
Serial Communication, UART |
|
Interface |
RS485(TTL/USB/RS232/ Bluetooth can be customized) |
|
Working Temperature |
0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized) |
|
Storage Temperature |
-25℃-~60℃ |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~50 ℃ can be customized
4. 20m can be customized
Features
- High-precision measurement: The laser distance sensor accuracy adopts advanced laser technology, which can measure the distance accurately and in real time. Its measurement accuracy is usually at the millimeter level, which can meet the application scenarios that require high distance measurement accuracy.
- Non-contact measurement: The contactless distance measurement sensor emits a laser beam and measures the time it takes for the laser to reflect back from the sensor to determine the distance, so it can be measured without contact with the target. This non-contact measurement does not cause any damage or disturbance to the target.
- High-speed measurement: The measurement speed of laser distance detection sensor is fast, makes it suitable for applications that require fast and accurate measurement, such as distance measurement and tracking of moving objects, automatic control of fast production lines, etc.
- Long life and stability: The laser transmitter and receiver of the laser distance detector generally adopt high-quality materials and optimized design, which have a long service life and stability. They are rigorously tested and calibrated to maintain a high degree of measurement accuracy under harsh environmental conditions.
- Versatile and Customizable: Laser distance sensor short range usually have multiple functions and output options, such as analog output, digital output, RS232/485 interface, etc. Users can choose the appropriate function and output method according to their needs, and make customized settings to meet the requirements of specific applications.
Advantages
As a professional manufacturer of laser rangefinder sensor, we have the following advantages:
- Technical Strength: We have a high-quality R&D team who have mastered advanced laser ranging technology and professional knowledge in related fields. We are committed to continuous innovation and improvement to continuously improve product performance and reliability.
- Manufacturing capacity: We have advanced production equipment and technology, and adopt precision manufacturing technology to ensure product quality and stability. Our production lines can meet the needs of mass production and ensure the timeliness and stability of product supply.
- Quality Control: We strictly implement the international quality management system and have established a perfect quality control system. We strictly screen and inspect raw materials, and strictly control and check each production link to ensure product quality and reliability.
- Customer customization: We can customize design and production according to customer needs, and provide professional technical support and solutions. We maintain close communication and cooperation with our clients, striving to meet their specific needs and expectations.
- After-sales service: We provide comprehensive after-sales service, including product installation guidance, technical support, maintenance and so on. We are committed to providing customers with high-quality services and solving the problems and difficulties they encounter during use.
