Time of Flight Sensor Arduino Laser Range Finder 40m
Product Introduction
TOF laser distance sensor is a type of laser range finder that can be used with Arduino boards. It uses a laser to measure the distance between the sensor and an object by calculating the time it takes for the laser to bounce back, measure distances up to 40 meters. You can use Arduino programming to read the distance measurements from the sensor. This typically involves sending a command to trigger the sensor, waiting for the measurement to be completed, and then reading the distance value from the sensor's output. With the distance data, you can then perform various tasks or actions based on the measured distance, such as controlling motors, activating alarms, or displaying the distance on an LCD screen.
If you want use the Tof Sensor Arduino be a versatile and accurate way to measure distances in your projects, please send us inquiry!
Features
1.Small size, light weight and high precision
2. The principle of phase method, suitable for indoor and outdoor models
3. Industrial grade, mm error
Parameters
| Model | M92-40 |
| Measuring Range | 0.03~40m |
| Measuring Accuracy | ±1mm |
| Laser Grade | Class 2 |
| Laser Type | 620~690nm,<1mW |
| Working Voltage | 5~32V |
| Measuring Time | 0.4~4s |
| Frequency | 3Hz |

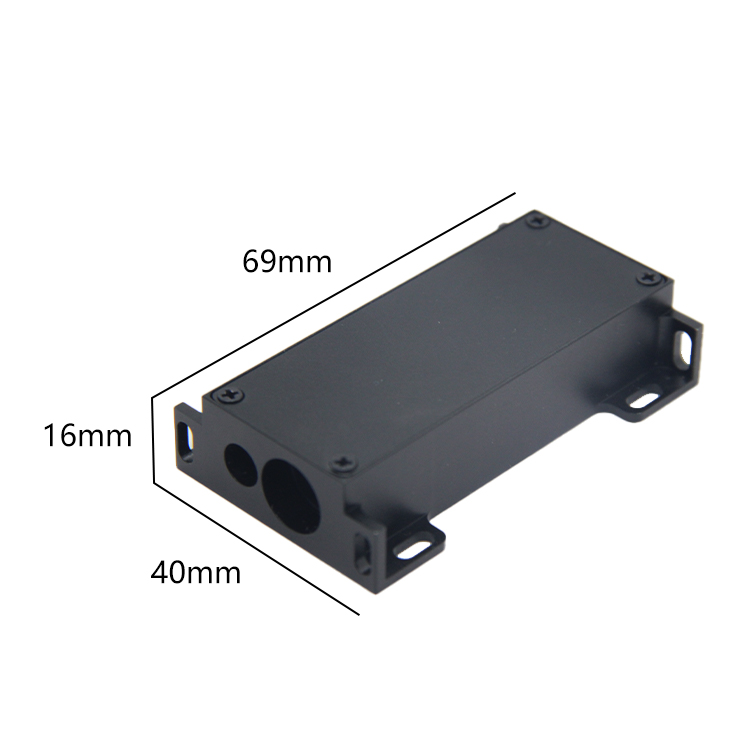

| Size | 69*40*16mm |
| Weight | 40g |
| Communication Mode | Serial Communication, UART |
| Interface | RS232(TTL/USB/RS485/ Bluetooth can be customized) |
| Working Temperature | 0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized) |
| Storage Temperature | -25℃-~60℃ |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~50 ℃ can be customized
4. 60m to choose from
Application
1. Road traffic
2. Automotive anti-collision
3. Construction survey and design
4. Levelmaterial level detection

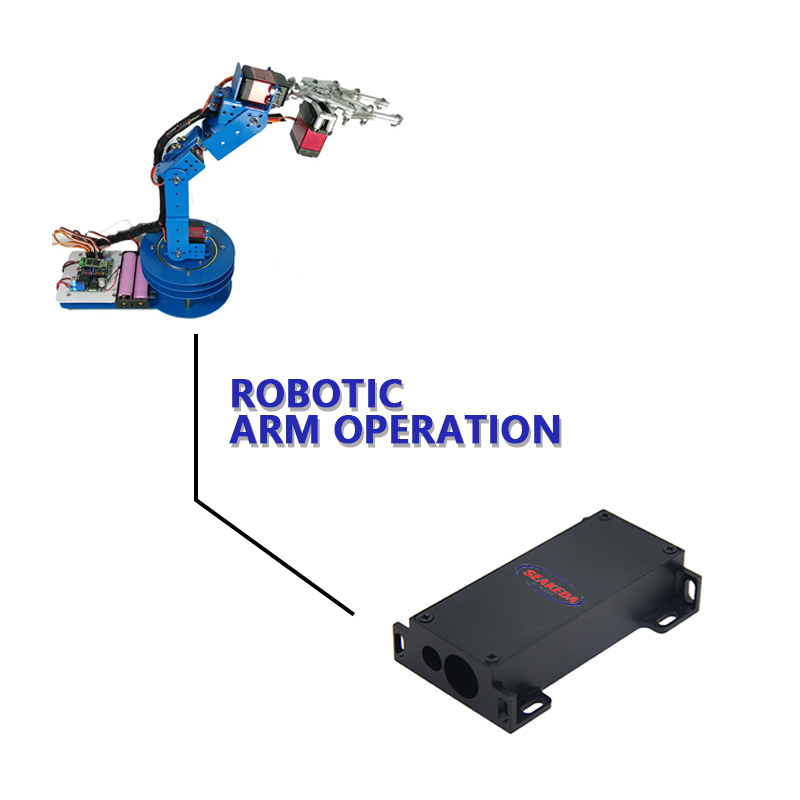

5. Robot arm control
6. Fixed length control of container crane spreader
7. Security monitoring
FAQ
1. Does the distance sensor work outdoors?
Yes, it does, but its measuring range and accuracy could be affected by the environment like the target surface, strong sunlight etc.
2. Is the range finder sensor compatible with Arduino?
Yes, Seakada laser distance sensor was already widely used in many applications, including Arduino, Raspberry pie, MCU etc.
3.What are the principles of Seakada laser distance sensors?
Seakada laser accurate distance measurement sensor based on the principles of phase, time of flight, pulse ranging.We will provide model selection suggestions based on your project needs.
