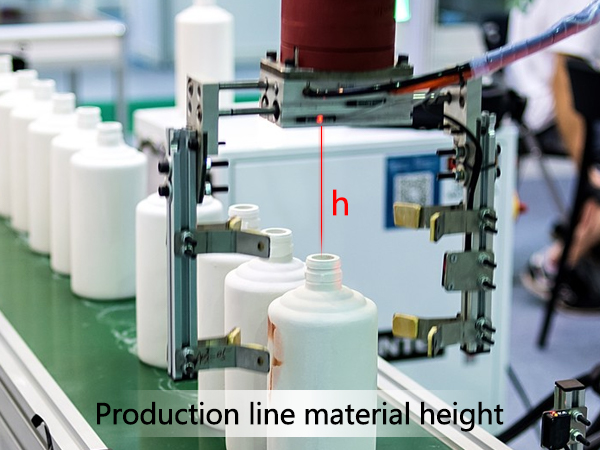

Production Line Material Height Laser Distance Measurement Sensor

A production line material height laser distance measurement sensor is a specialized rangefinder module device used in manufacturing and industrial settings to accurately measure the height or level of materials, such as powders, granules, liquids, or solid objects. These distance measurement sensors are crucial for maintaining efficient and consistent production processes by ensuring that material levels are within specified limits, which can help prevent overflows, shortages, or other issues.

The laser distance measurement sensor typically provides a digital output (e.g., RS-485, Modbus, RS-232, USB, Bluetooth) that can be integrated with control systems, PLCs, or arduino systems. The laser sensor for height measurement is usually housed in a rugged, dust-proof, and water-resistant enclosure suitable for industrial environments. It can be mounted at a fixed position above the material being measured.

Applications

1. Level Monitoring: Continuous monitoring of material levels in silos, tanks, hoppers, and conveyors.

2. Quality Control: Ensuring that material heights are within specified tolerances to maintain product quality.

3. Automation: Integrating with automated systems to trigger actions such as refilling, stopping, or adjusting the production line.

4. Inventory Management: Accurate measurement of material volumes for inventory tracking and management.

Advantages

- High Accuracy: Laser distance sensors provide high precision and accuracy, often 1-3 millimeters.

- Non-Contact Measurement: No physical contact with the material, reducing wear and tear and contamination risks.

- Fast Response Time: Real-time measurements allow for quick adjustments and responses.

- Versatility: Can be used with various types of materials and in different environmental conditions.

- Easy Integration: Compatible with a wide range of industrial control systems.

Considerations

- Environmental Factors: Dust, steam, and other atmospheric conditions can affect the laser’s performance. Some laser ranging sensors have built-in features to mitigate these effects.

- Material Reflectivity: The reflectivity of the material can influence the laser rangefinder sensor‘s accuracy. Highly reflective or dark materials may require specific distance sensor configurations.

- Safety: Lasers must be used in accordance with safety regulations to avoid eye damage and other hazards.

Selection Criteria

- Measurement Range: Ensure the distance measurement sensors‘ range matches the expected material height variations.

- Resolution and Accuracy: Choose a laser distance measurement sensor with the required resolution and accuracy for your application.

- Environmental Protection: Select a laser measurement sensor with the appropriate IP rating for the environment.

- Output Type: Ensure the output type is compatible with your existing control system.

- Cost and Maintenance: Consider the initial cost and ongoing maintenance requirements.

By carefully selecting and integrating a laser distance measurement sensor, you can enhance the efficiency, reliability, and safety of your production line.
