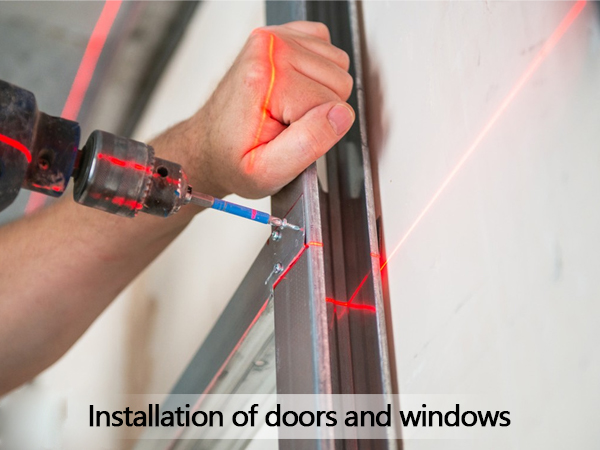

Installation of Doors and Windows High Accuracy Distance Sensor

Installing a high accuracy distance sensor for doors and windows can significantly enhance security, automation, and energy efficiency in both residential and commercial settings. Here’s a guide to help you through the process:

1. Choose the Right Precision Distance Sensor

Type of Distance Sensor: Common types include ultrasonic, infrared (IR), and laser distance sensors. For high accuracy, laser distance measurement or IR sensors are often preferred.

Range and Accuracy: Ensure the industrial distance sensor‘s range and accuracy meet your needs. For example, a short range distance sensor with ±1mm accuracy might be suitable for precise applications.

Environmental Factors: Consider factors like temperature, humidity, and light conditions that may affect the precision distance sensor‘s performance.

2. Gather Necessary Tools and Materials

Sensor Unit: The high accuracy distance sensor.

Power Supply: Depending on the precision distance sensor, you may need a battery, AC adapter, or a connection to an existing power source.

Mounting Hardware: Screws, brackets, or adhesive depending on the installation surface.

Wiring and Connectors: If the short range distance sensor needs to be connected to a control system by USB/RS485/RS232/TTL.

3. Plan the Installation Location

Positioning: Place the high accuracy laser distance sensor in a location where it has a clear line of sight to the door or window. Avoid obstructions and reflective surfaces.

Height and Angle: Determine the optimal height and angle for the laser distance sensor. Typically, mounting the precision laser distance sensor at the top or side of the door or window frame is effective.

4. Prepare the Surface: Ensure the mounting surface is clean and free of dust and debris. If using screws, drill pilot holes to avoid splitting the material. If using adhesive, apply it according to the manufacturer’s instructions.

5. Install the Sensor (send us sales@seadeka.com)

Mount the High Accuracy Distance Sensor: Secure the distance sensor to the marked spot using screws or adhesive. Ensure it is firmly attached and level.

Connect Power: Connect the laser distance sensor to the power supply. If it’s a wired distance measure sensor, ensure the wiring is properly connected and insulated.

Test the Connection: Before finalizing the installation, test the high accuracy distance measurement sensor to ensure it is receiving power and functioning correctly.

6. Calibrate the Sensor

Initial Calibration: Follow the manufacturer’s instructions to calibrate the distance measurement sensor. This may involve setting the baseline distance and adjusting sensitivity.

Fine-Tuning: Adjust the laser distance measurement sensor settings to achieve the desired accuracy and response time.

7. Integrate with Control System (if applicable)

Wiring: If the precision distance sensor is part of a larger security or automation system, connect it to the control panel or hub.

Programming: Program the control system to recognize the high precision distance sensor and set up any necessary actions (e.g., triggering alarms, locking doors, etc.).

Testing: Test the entire system to ensure all components are working together seamlessly.

8. Final Checks and Maintenance

Final Testing: Conduct a thorough test to ensure the industrial laser distance sensor is accurately detecting the opening and closing of the door or window.

Regular Maintenance: Periodically check the laser ranging sensor for any signs of wear or damage. Clean the mini rangefinder sensor and its surroundings to maintain optimal performance.

9. Documentation

Record Settings: Document the short range laser distance sensor settings and any calibration data for future reference.

User Manual: Keep the user manual and any installation guides in a safe place for future troubleshooting and maintenance.

By following these steps, you can successfully install a high accuracy distance sensor for your doors and windows, enhancing the security and functionality of your space.
