How To Use The Laser Distance Sensor Module In Wheelchair Lift

Using a laser distance sensor module in a wheelchair lift can enhance safety and functionality by accurately measuring distances and preventing collisions. Here’s a guide on how to integrate and use a small laser distance sensor in a wheelchair lift:

Steps to Integrate the Laser Distance Sensor:

1. Choose and Mount the Laser Distance Sensor Module:

- Select a suitable industrial laser distance sensor based on your requirements.

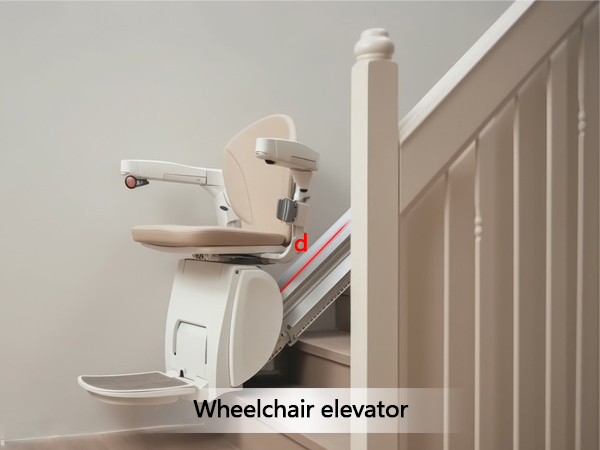

- Mount the wheelchair distance sensor on the lift mechanism where it can accurately measure distances from obstacles or the ground.

2. Wiring:

- Connect the lift laser distance sensor to the microcontroller according to the laser distance measure sensor’s documentation.

3. Power Supply:

- Ensure the power supply is appropriate for the laser measure sensor and microcontroller.

- Connect the power supply to both the microcontroller and the mini distance sensor.

4. Programming the Microcontroller:

- Write a Arduino program to read distance data from the laser distance sensor and process it.

5. Safety and Control Logic:

- Implement control logic to stop the lift if an obstacle is detected within a certain distance.

- For instance, if the distance is less than 10 cm, stop the lift and sound an alarm.

6. Testing and Calibration:

- Test the system thoroughly in a controlled environment.

- Calibrate the laser distance sensor module if necessary to ensure accurate readings.

By following these steps, you can successfully integrate a mini laser distance sensor into a wheelchair lift, enhancing its safety and functionality.
