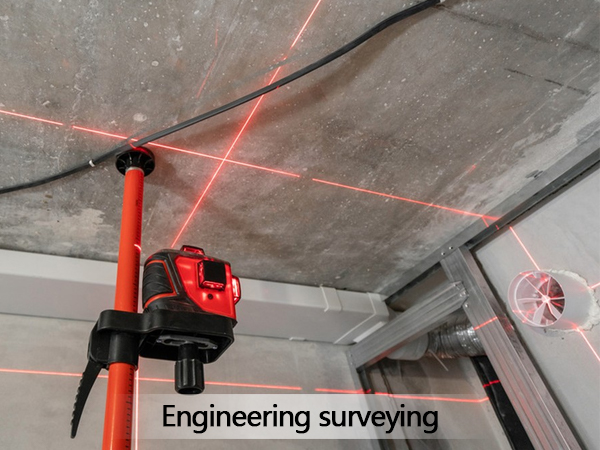

Engineering Surveying Laser Measuring Sensor

Engineering surveying laser measuring sensors, also known as laser distance meter modules or rangefinder modules, are essential laser measuring tools in the field of surveying and construction. Industrial laser distance sensor uses laser technology to measure distances with high accuracy and speed. Here’s an overview of these laser measurement sensors:

Working Principle

Laser measuring sensors work by emitting a laser beam that reflects off a target and returns to the device. The time it takes for the laser to travel to the target and back is measured, and this time is used to calculate the distance using the speed of light.

Types of Laser Measuring Sensors

1. Laser Distance Sensors: These are small size used for quick and accurate measurements. Typically accurate to within 1mm-2 mm. Usually ranging up to 0.03-150m, but some models can measure up to 1000m.

2. TOF Laser Distance Sensors: It can measure distances up to several hundred to thousand meters. Used for outdoor applications in topographic surveys, building information, and smart automation.

3. Infrared Laser Rangefinder Module: Up to several kilometers, but some models PTF-LD200X can measure up to 20000m. High precision, typically sub-meter. Applications: Land surveying, military, UAV, construction, hunting, and engineering projects.

4. Handheld Laser Distance Meters: Varies range, but generally up to 30-150 meters. Typically accurate to within 2-3 millimeters over short distances.

Key Features

1. Accuracy and Precision: Essential for reliable measurements.

2. Measurement Range: The maximum distance the industrial laser distance sensor can measure.

3. Durability: Rugged design to withstand outdoor and construction site conditions.

4. Data Storage and Transfer: Ability to store and transfer data to other devices or software.

Applications

1. Construction: Layout, as-built surveys, and quality control.

2. Land Surveying: Topographic surveys, boundary delineation, and land development.

3. Architecture and Engineering: Building design, structural analysis, and BIM.

4. Mining: Volume calculations, stockpile management, and mine planning.

5. Forestry: Tree height measurement and forest inventory.

6. Real Estate: Property measurement and valuation.

Advantages

1. Speed and Efficiency: Quick and accurate measurements reduce labor and time.

2. Non-Contact Measurement: No need to physically touch the target, which is useful in hazardous or inaccessible areas.

3. Versatility: Can be used in a wide range of applications and environments.

4. Data Integration: Easily integrates with other surveying and arduino software.

Considerations

1. Environmental Factors: Dust, rain, and temperature can affect performance.

2. Target Reflectivity: Highly reflective or dark surfaces can impact accuracy.

3. Cost: High-precision and long range laser measurement sensor devices can be expensive.

In summary, laser measuring sensors are indispensable tools in engineering surveying, offering a combination of speed, accuracy, and versatility. Choosing the right type of laser measurement sensors depends on the specific requirements of the project, including the required accuracy, measurement range, and environmental conditions. Please feel free to ask Seakeda sensor manufacture!
