Infrared Laser Rangefinder Sensor 100m Long Range
Product Introduction
IR laser distance sensor with high accuracy, long-distance detection, visible IR laser, easy to aim at the object to be measured. laser range finder sensor is based on phase laser technology, which can meet the needs of 100m long-distance millimeter-level high-precision ranging. The high accuracy distance sensor provides measurement modes such as single measurement, continuous measurement and automatic measurement for customers to use flexibly. At the same time, it provides HEX and ASCII two UART serial port output data formats. Laser ranging sensors can be applied to material position positioning, liquid level measurement, moving object measurement, tunnel/bridge deformation monitoring, elevator positioning monitoring, etc.
Features
1. Ultra-wide power supply voltage: 5~32V DC;
2. Real-time distance monitoring and displacement control of moving objects can cooperate with flow control and data analysis in the production process;
3. Protection level: IP54;
4. Non-contact measurement technology, less affected by the working environment, easy to install layout and background control;
5. In the outdoor environment, it can still maintain high measurement accuracy and reliability;
6. The sensor can be customized and processed into a full seal, which is convenient for use in harsh environments;
7. It can be powered by vehicle power supply or industrial DC power supply;
8. The power consumption is stable and the power consumption is extremely small;
9. Standard industrial interface, cooperate with operating software to realize all-round industrial automation control;
10. It can be customized to add Bluetooth, screen, WIFI, rechargeable lithium battery and other functions.
Parameters
| Model | B91-100 | Frequency | 3Hz |
| Measuring Range | 0.03~100m | Size | 78*67*28mm |
| Measuring Accuracy | ±3mm | Weight | 72g |
| Laser Grade | Class 2 | Communication Mode | Serial Communication, UART |
| Laser Type | 620~690nm,<1mW | Interface | RS485(TTL/USB/RS232/ Bluetooth can be customized) |
| Working Voltage | 5~32V | Working Temperature | 0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized) |
| Measuring Time | 0.4~4s | Storage Temperature | -25℃-~60℃ |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board.
3. Operating temperature -10 ℃~50 ℃ can be customized.
Details of Laser Range Sensor

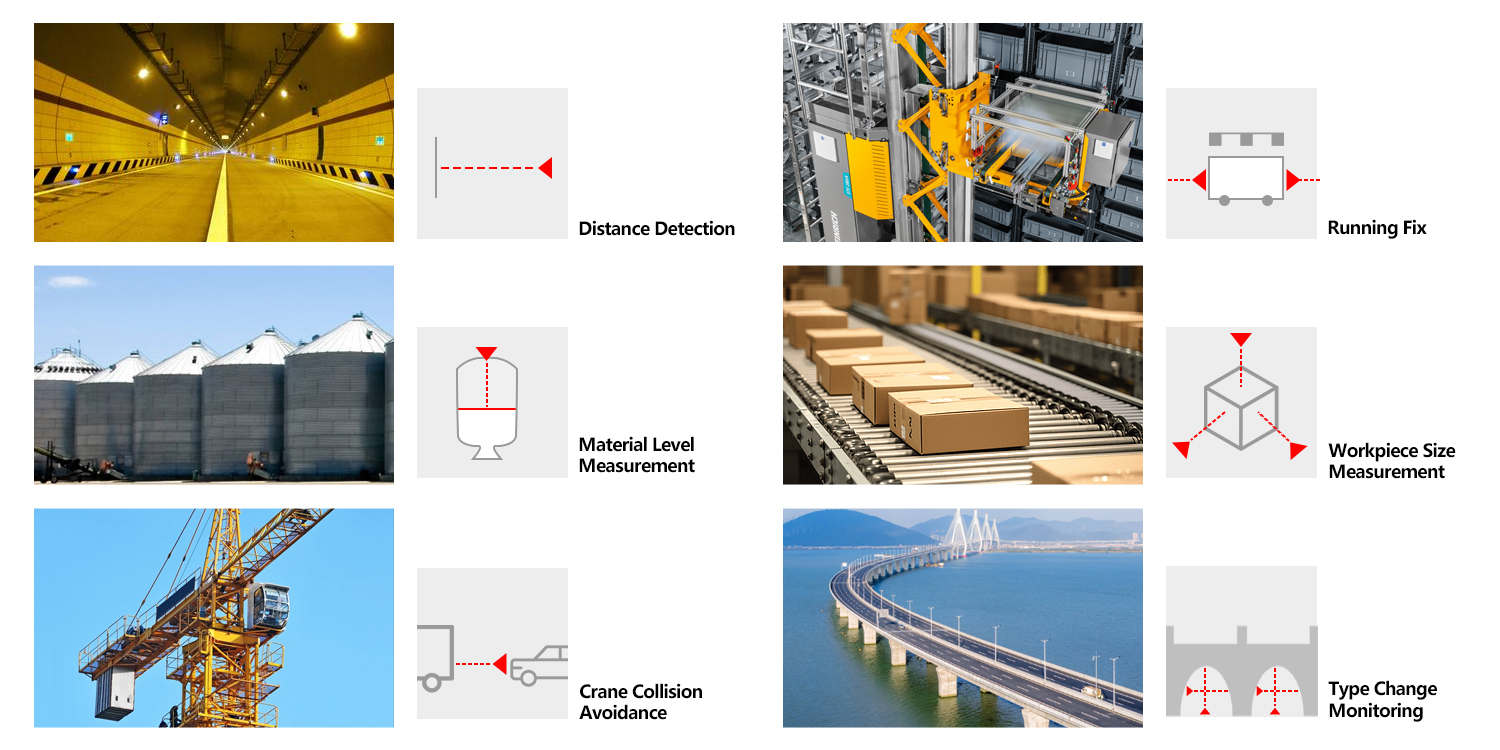

Application of Laser Distance Sensors
Buyer Reviews
1. Very compact and easy to use module. The price to quality ratio is just great - the standard deviation was pretty much on a Leica device level.
---Anton, Russian
2. Good product quality, properly packaged and delivered quite fast. The laser is easy to use and integrate.
---Rafael, United States
3. Laser sensor works as expected with 1 mm accuracy
---Chandra,Indonesia
4. Accurate and dependable laser distance sensor.
---Gerry, United States
5. Very fast delivery and the laser system works fine on arduino and PC.
---Karl, Germany
R&D Services
1. Our company provides laser ranging sensors with different ranges such as 5m, 10m, 20m, 40m, 60m, 100m, 200m, 500m, 1km, 1.2km, and 1.5km.
2. The accuracy of the sensor has mm, cm, m, etc.
3. The output of the sensor includes UART (TTL), RS232, RS485, wireless Bluetooth, analog, ModBus-RTU;
4. Our company can customize the development of special properties for special industries according to your requirements.
5. Our company can provide you with data real-time remote display equipment and accessories, such as screens.
6. We can provide you with test software, test reports or sample codes, etc.
7. Our company can provide you with system integration and perfect project demand solutions.
