Green Laser Distance Measure Sensor Waterproof

Short Description:

Laser: Green, Class , 520nm, >1mW

Measuring Range: 0.03~60m

Accuracy: +/-3mm

Frequency: 3Hz

Voltage: 6~36V

Interface: UART communication protocol

Protection: IP67 metal protective housing

Application: low-altitude flying drones, water surface measurement, silo liquid level measurement, intelligent underwater robots, etc.



We provide product laser range sensor customization service and technical support, if you need to get more product details, please click the button below or send us an email. We have a professional team to provide free guidance and advice to customers, and give feedback within 24 hours.


Product Detail

Product Tags

Product Introduction

High-precision industrial optical distance sensor uses a green laser for measurement, which can achieve high-precision and stable measurement, and the measuring range can reach 60 meters. The green light range finder sensor has good anti-interference ability and stability. The shell of the sensor adopts IP67 dust-proof and waterproof design, which can be used in underwater environment without being eroded and damaged by water. Widely used in liquid level and underwater measurement in underwater environments such as rivers, lakes, and oceans, it can help users monitor water levels and underwater conditions in real time in order to take corresponding measures.

Parameters

Model BA9D-IP67 Frequency 3Hz
Measuring Range 0.03~60m Size 122*84*37mm
Measuring Accuracy ±3mm Weight 515g
Laser Grade Class 3 Communication Mode Serial Communication, UART
Laser Type 520nm,>1mW Interface RS485(TTL/USB/RS232/ Bluetooth can be customized)
Working Voltage DC 6~36V Working Temperature -10~50
Measuring Time 0.4~4s Storage Temperature -25-~60

Note:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature can be customized


Application

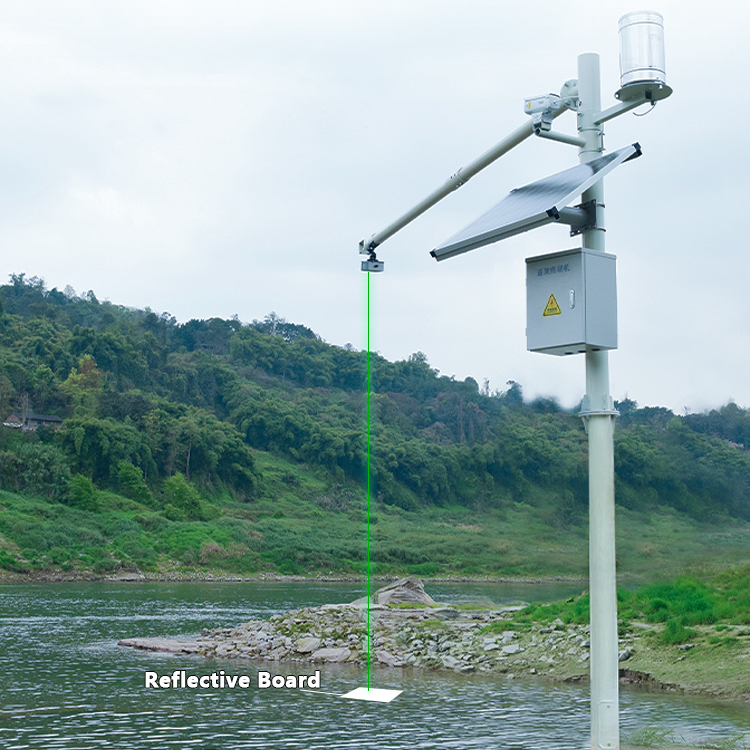

Green laser measuring device is integrated into the monitoring system for uninterrupted real-time automatic monitoring of the liquid levels of rivers, lakes, silos, pipelines, underground, etc., which is beneficial to water conservancy projects and industrial automation. For details, please refer to the water level monitoring application or contact us.

waterproof distance sensor

Advantage

As a professional laser measurement sensor manufacturer, we provide customized services to meet customers' individual needs and specific application scenarios. Our customized service has the following advantages:

1. Rich technical experience: We have a team of experienced engineers who have deep technical strength and innovative capabilities in the field of distance detection sensors. Whether modifying an existing product or designing a new sensor from scratch, we can provide professional technical support and solutions.

2. Flexible product customization: We can customize the laser rangefinder to different degrees according to the specific needs of customers. Whether it is appearance design, ranging range, accuracy or interface type, etc., we can adjust and optimize according to customer requirements to ensure the best performance of the sensor in specific scenarios.

3. Rapid product development and delivery: We have an efficient production process and perfect supply chain management, which can quickly respond to customer customization needs and ensure on-time delivery. Our team works closely with clients to understand their timing requirements and provide the best delivery plan to ensure their projects start and finish on time.

4. Quality assurance: We always have a high sense of responsibility for product quality. Whether it is raw material procurement or production process control, we strictly follow the standards of the international quality management system. Each laser ranging sensor will undergo strict quality inspection and verification to ensure its accuracy, stability and reliability. In a word, our laser rangefinder sensor customization service focuses on technological innovation, flexibility and high quality assurance to meet customers' special needs and application scenarios. We believe that by working closely with our customers, we can provide the best solutions to help them achieve better sensor measurement and control results.
